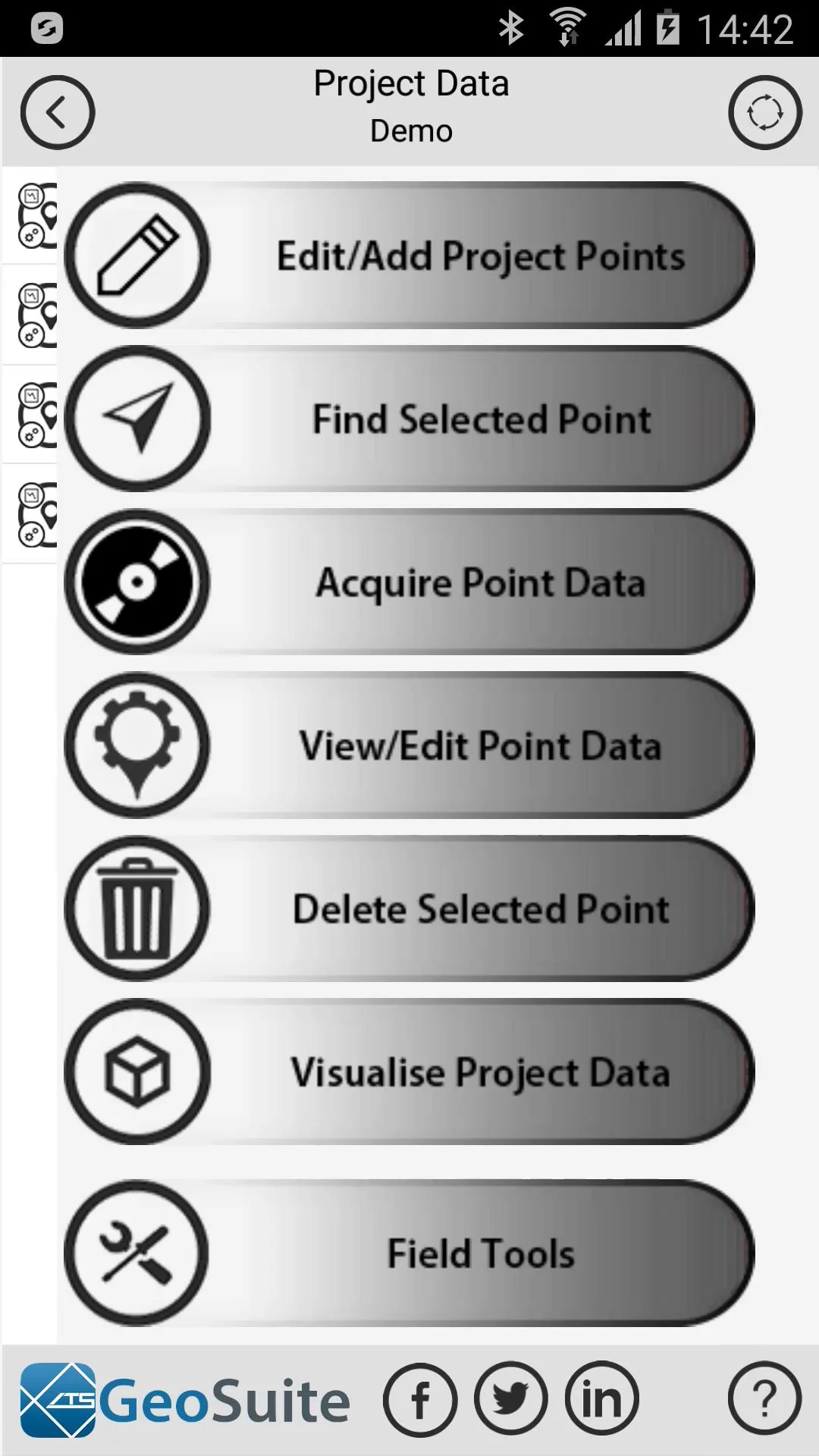

Select the "Field Tools" option from the point menu.
Create a single point in the field

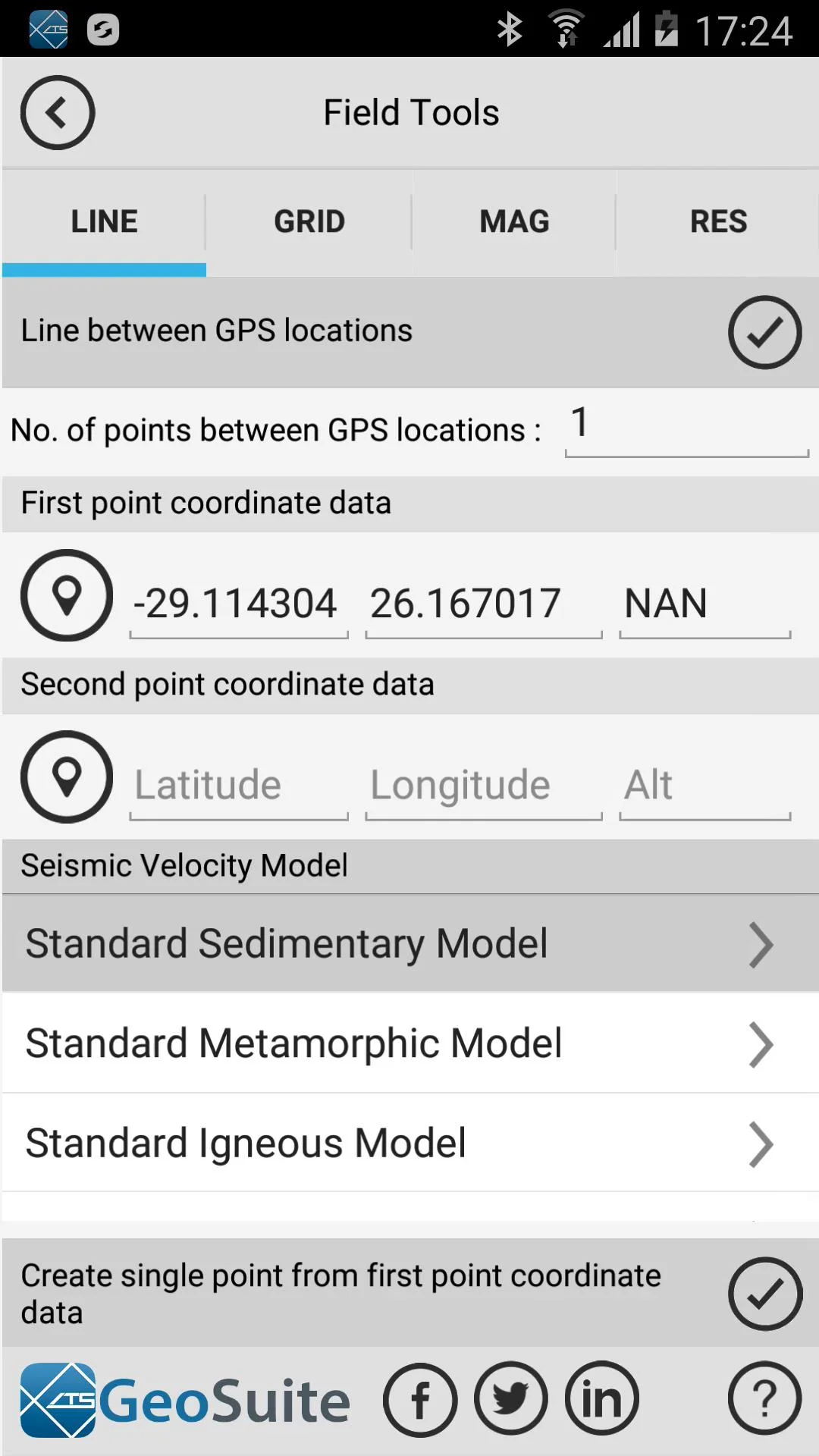

To create a single project point in the field using GPS location data or manual location setting, select the "Line" tab. Populate the "First Point Coordinate Data" Latitude, Longitude and Altitude fields with WGS84 decimal degree data or use the "Get GPS Location" option to populate the fields with the device current GPS location.
Select a seismic velocity model to apply to the point. Once the coordinate fields have been populated select the "Create single point from first point coordinate data". the point will then be created and added to the project point list.
Create a line of points between two field coordinates
To create a line of points in the field using GPS location data or manual location setting, select the "Line" tab. Populate the "First Point Coordinate Data" and "Second Point Coordinate Data" Latitude, Longitude and Altitude fields with WGS84 decimal degree data or use the "Get GPS Location" option, for both the first and second points to populate the fields with the device current GPS location.
Select a seismic velocity model to apply to the line of points and provide the number of points to be create between the two specified locations. Once the coordinate fields have been populated select the "Line between GPS locations". the points will then be created and added to the project point list.

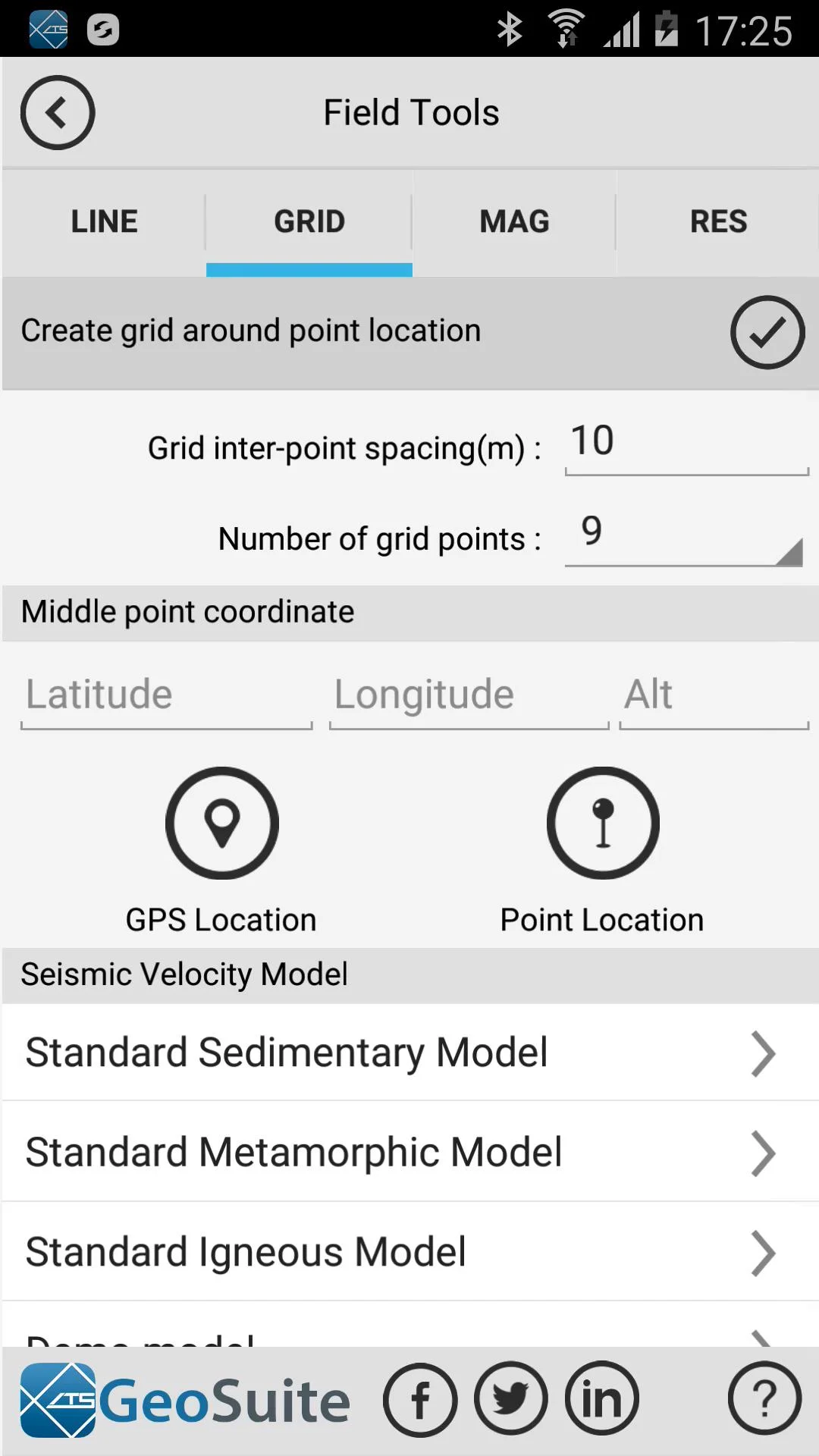

Create a grid of points around a field coordinate

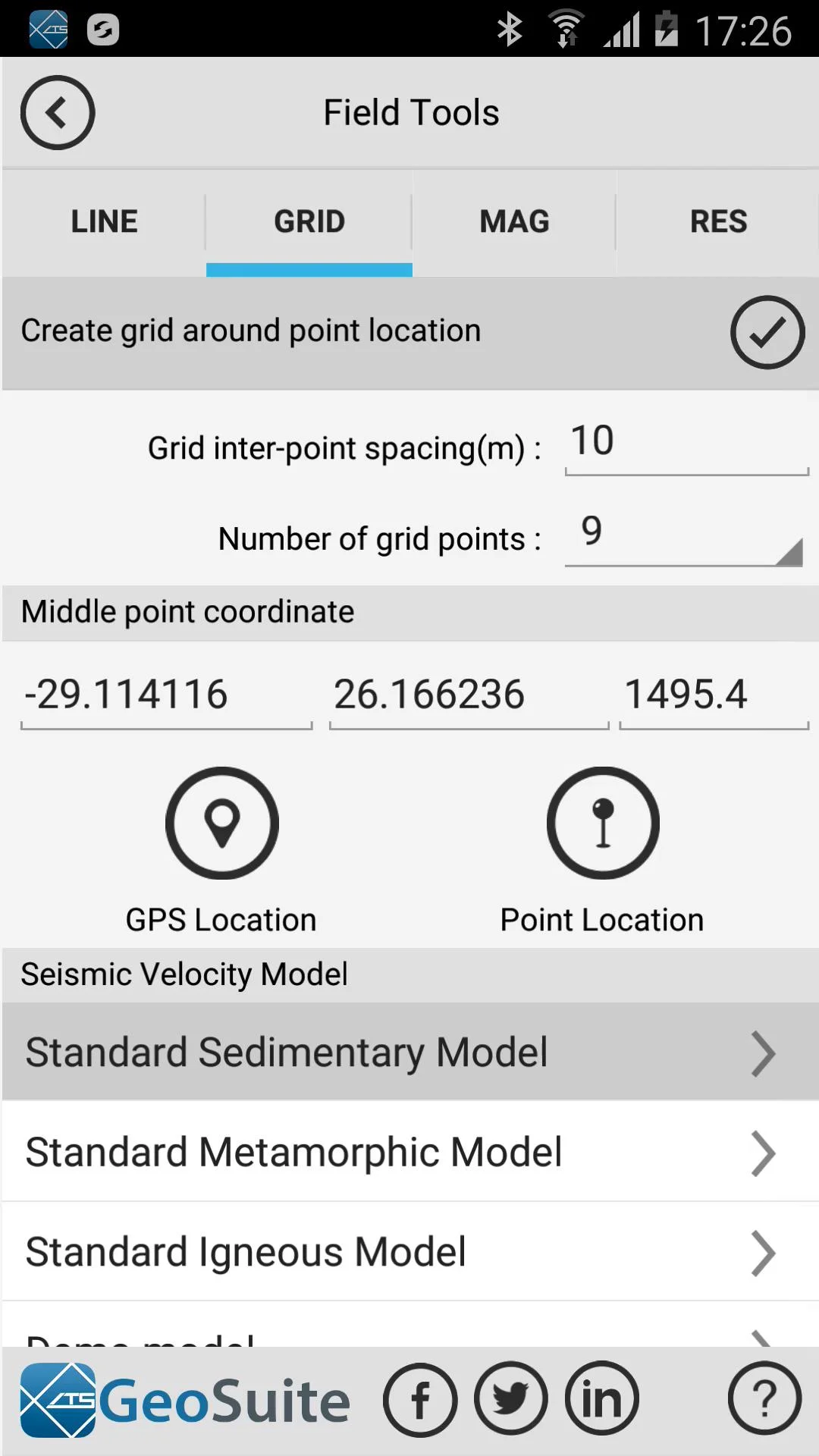

Populate the "Middle point coordinate" Latitude, Longitude and Altitude fields manually using WGS84 Decimal degrees format or populate the coordinate fields using the "Get GPS Location" option or the coordinate data from the currently selected point on the project point menu list by using the "Select existing project point" option.
Select a "Grid inter-point spacing(m)" and the "Number of grid points". Then select a velocity model to apply to the grid points to be created. Lastly, select the "Create grid around point location" option to create the points. The grid points will be added to the current project point list.

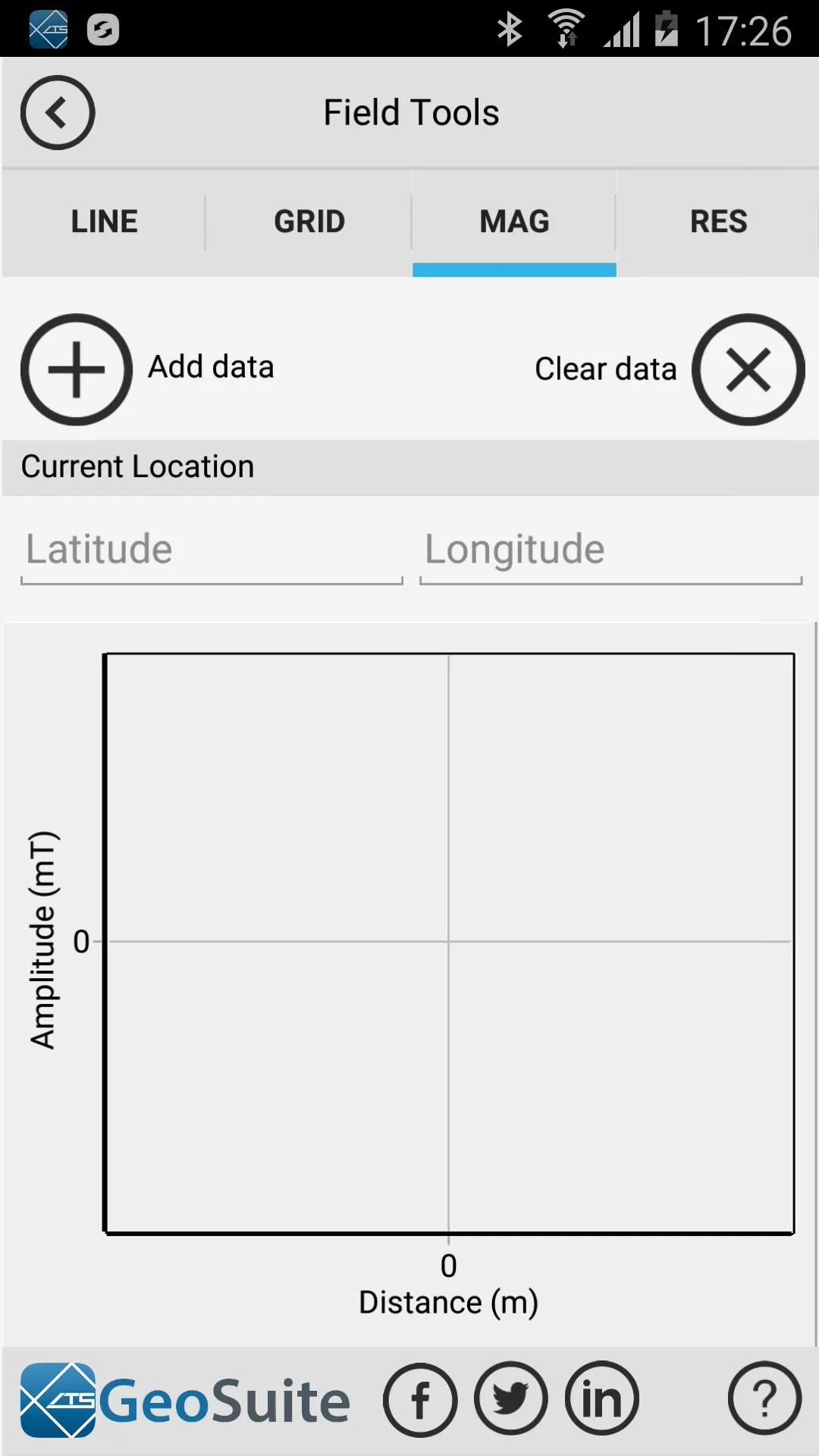

Take magnetic field readings

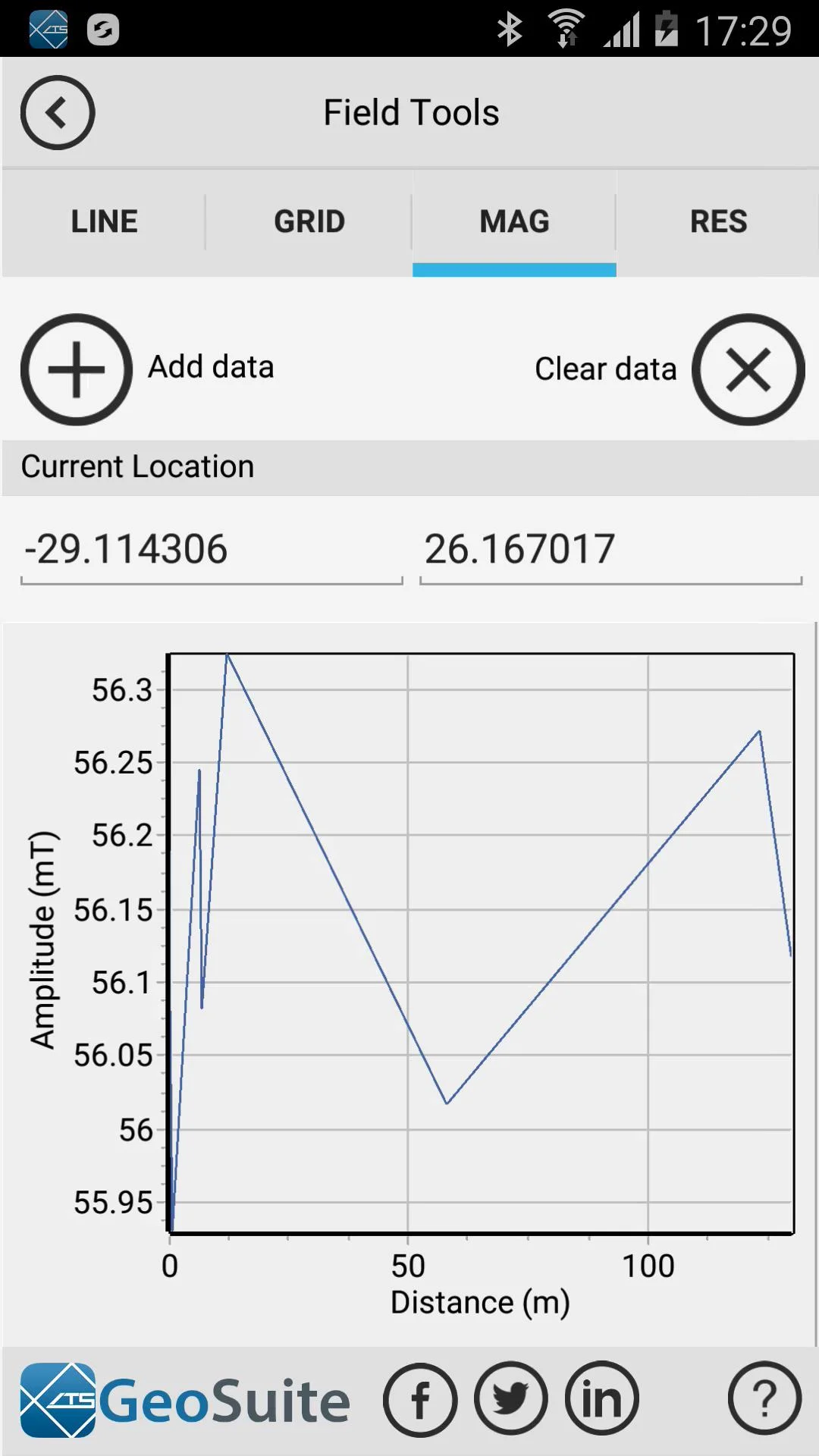

To take magnetic field readings in the field select the "Mag" tab. To take your first reading select the "Add magnetic reading at current location" option. A message will appear requesting the user to move to the next location and repeat the process. Once the user has done so, the chart will show the magnetic field values at both locations and the distance between the two locations. This process can be repeated at multiple locations to build a magnetic field strength profile on the chart.
Record an apparent resistivity sounding
To record a apparent resistivity sounding a a location in the field, select the "Res" tab.

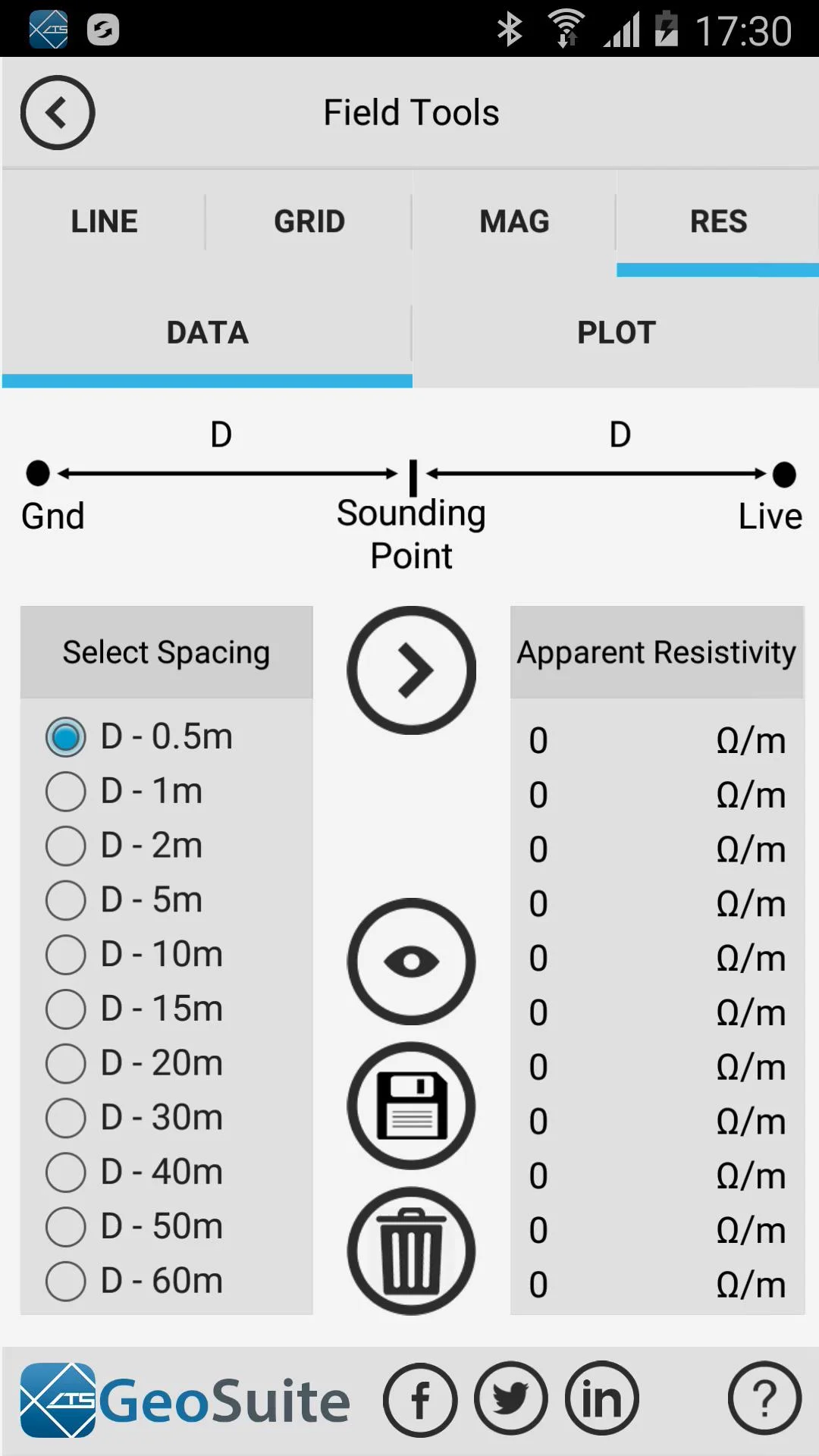

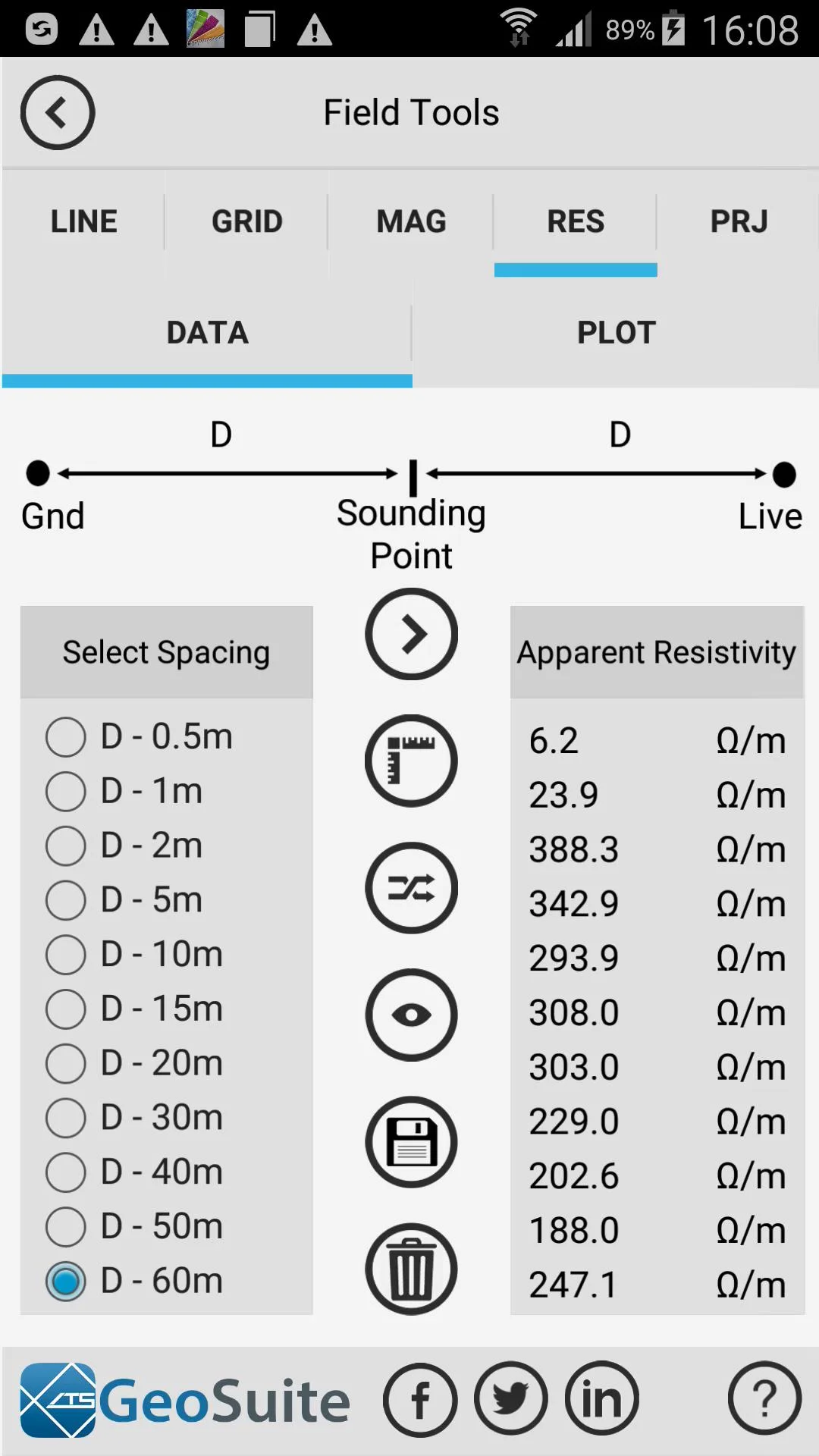

Select an inter electrode spacing "D" from the "Select Spacing" list then setup your feild electrodes as shown in the diagram at the top of the window. Once done, select the "Acquire apparent resistivity data" option to initiate the data collection process. Once done, the measured resistivity will be displayed on the "Apparent resistivity list to the right of the screen.
This process must be repeated until all the "Select Spacing" fields have been populated.
Once all the spacing fields have been collected, press the "Render apparent resistivity data" option to render the resistivity sounding profile in the "View" tab.

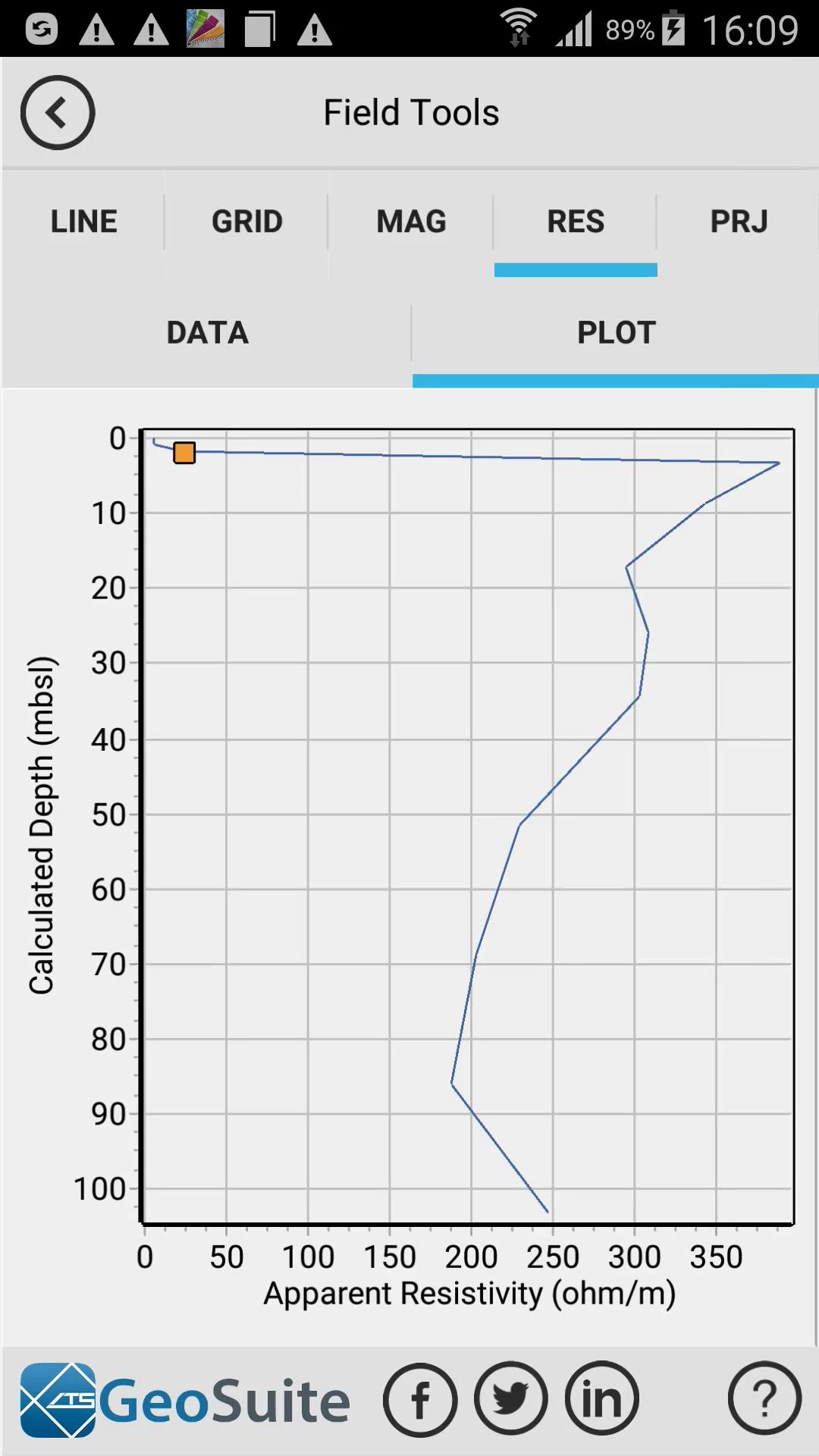

The chart data will shows the apparent resistivity depth sounding data as well as the estimated groundwater table depth by the orange block on the line,
To save the apparent resistivity sounding data to the selected project point on the project point menu list, use the "Save data to current point" option.
To clear the data from the chart and the apparent resistivity table use the "Clear data" option.
In the event the cable needs to be calibrated to a device with lower output voltages, the cable calibration function can be used.
To reset any pre-defined cable calibration data already set by the user to the default value of 1, the reset cable calibration function can be used.
For more information on Cable Calibration see the following link:
Project Bulk Updates
This function allows the user to apply bulk changes to points within a project.

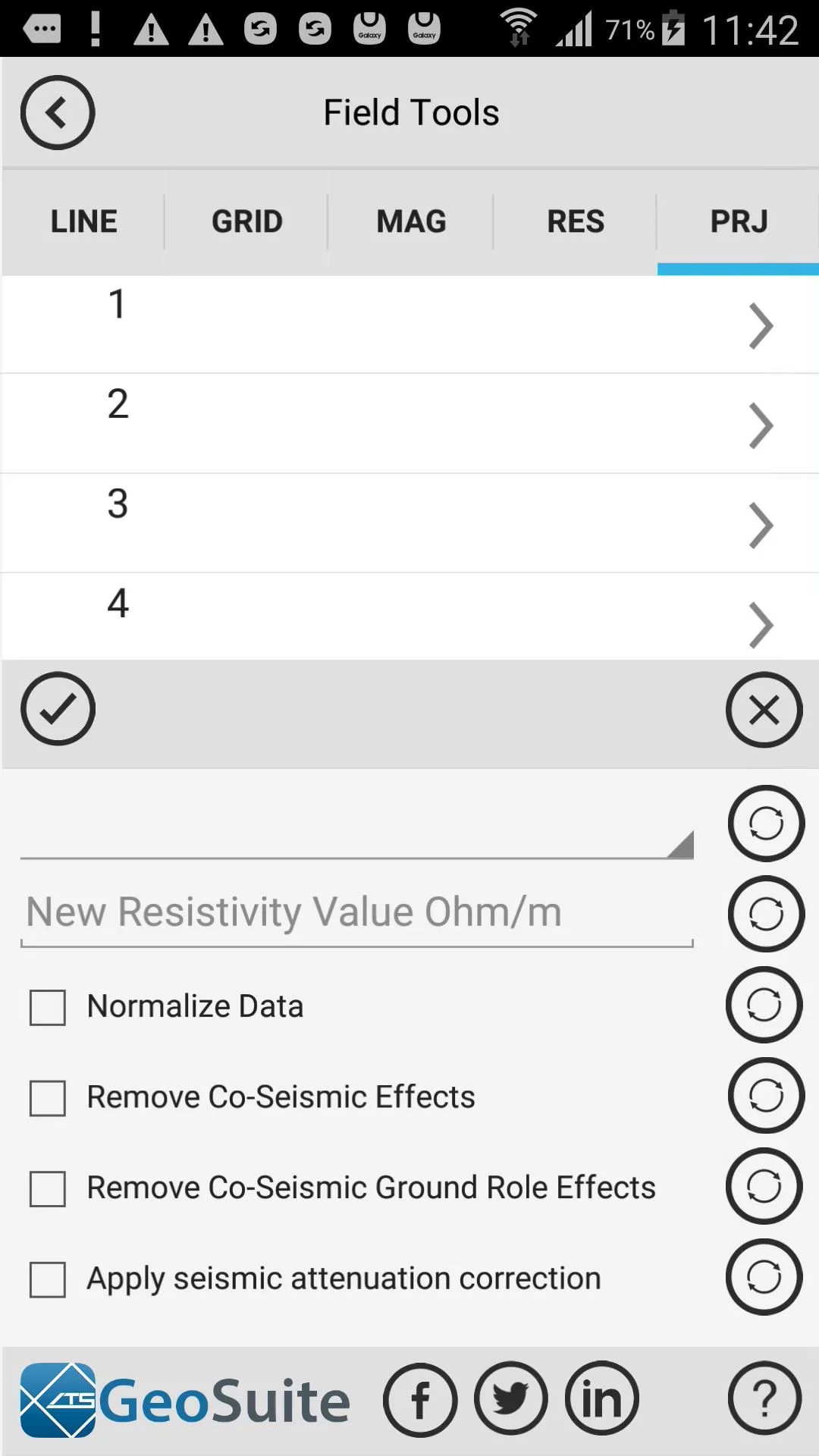

This function allows the user to bulk update the following point settings:
- Seismic Velocity model
- Resistivity value
- Normalize data
- Remove co-seismic effects
- Remove co-seismic effects
- Apply seismic attenuation correction
To use this function simply select the points in the project which you would like to update then enter the relavant point setting change from the option list. Click on the update button next to the appropriate setting you want to cahnge to apply the setting update to all the selected points.
The point seting will be update and saved automatically. Only one change can be made at a time.
